Cabling a sand monitor to a remote wellpad can cost more than the sensor itself. The ClampOn BIRD Particle Monitor is a wireless sand monitor that removes the cable, the junction box and the wiring diagram.
PT Saka Nusa Persada supplies the ClampOn BIRD Particle Monitor in Indonesia as a ClampOn distributor. ClampOn designed BIRD especially for the downstream and unconventional market, where sites are many, small and far apart. You can also read more at ClampOn.
How the Wireless Sand Monitor Works

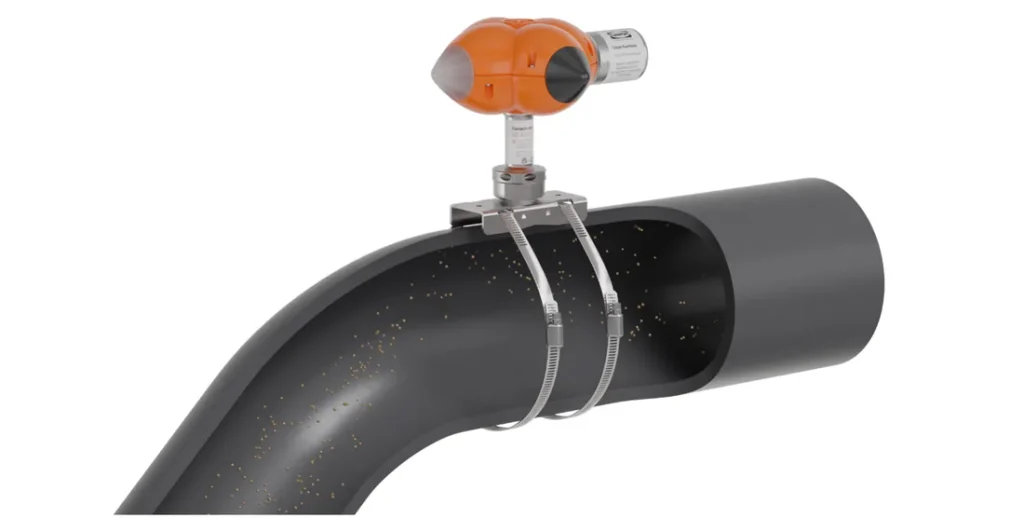

Like its wired siblings, the BIRD detects the ultrasonic signal from particles hitting the inside of the pipe wall just after a bend. As a result, you get reliable, real-time data the moment a well starts producing sand. You can then find the maximum sand-free rate and the maximum acceptable sand rate, and so limit erosion in pipes and structures.
One Year on a Single PowerModule
Energy-efficient DSP, a very low-power RF node and a sub-1 GHz ultra-low-power mode allow the sensor to run for about a year on one PowerModule. In addition, the BIRD watches its own PowerModule and tells you when it is time for a replacement.

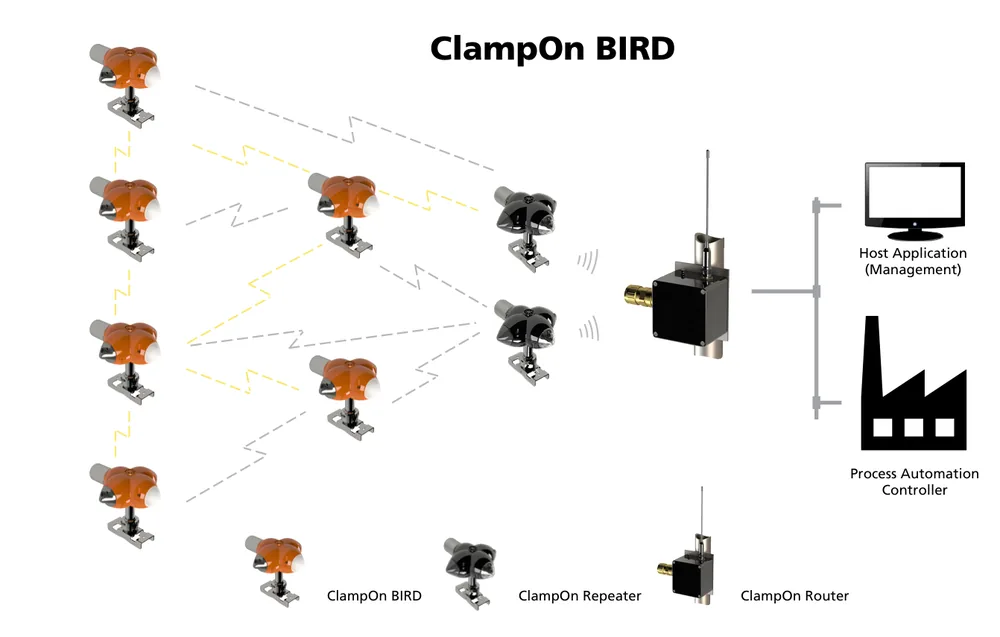

Self-Forming Mesh Network
Each BIRD joins a multi-hop mesh that forms and heals itself, and every new sensor joins automatically. Therefore, a whole network goes live in only a few hours, even at remote and rural locations. In addition, data is encrypted, and firmware updates arrive over the air.
Wireless Sand Monitor Specifications
| Technology | Passive acoustics (ultrasonic), ClampOn DSP III electronics |
| Minimum particle size | 25 µm in oil, 15 µm in gas |
| Minimum sand rate | 0.01 g/s, at a minimum flow velocity of 0.5 m/s |
| Uncertainty / repeatability | ±5% with sand-injection calibration; repeatability better than 1% |
| Radio | 862–930 MHz, IEEE 802.15.4g, under 14 dBm, up to 1 km line of sight |
| Data rate | Configurable from 1 second to 60 minutes |
| Pipe surface temperature | −40 °C to +140 °C (high-temperature option −162 °C to +350 °C) |
| Hazardous area | Intrinsic safety (Ex i), so it suits hazardous areas |
| Enclosure | PBT and 316L, IP65, 212 × 174 × 165 mm, 1.2 kg |
| Power | 0.1 W on average, so one PowerModule lasts about a year |
Specifications follow the ClampOn brochure (October 2025) and datasheet (January 2026) and may change without notice.
Need a cabled instrument for a hazardous plant area instead? Then see the ClampOn DSP Particle Monitor. The same wireless platform also powers the BIRD PIG Detector and the BIRD Leak Monitor.
Explore the full ClampOn sensor range available in Indonesia through PT Saka Nusa Persada.
Monitoring many small wells or pads? Request a technical assessment, and then we will plan the BIRD network, repeaters and router for your field.
