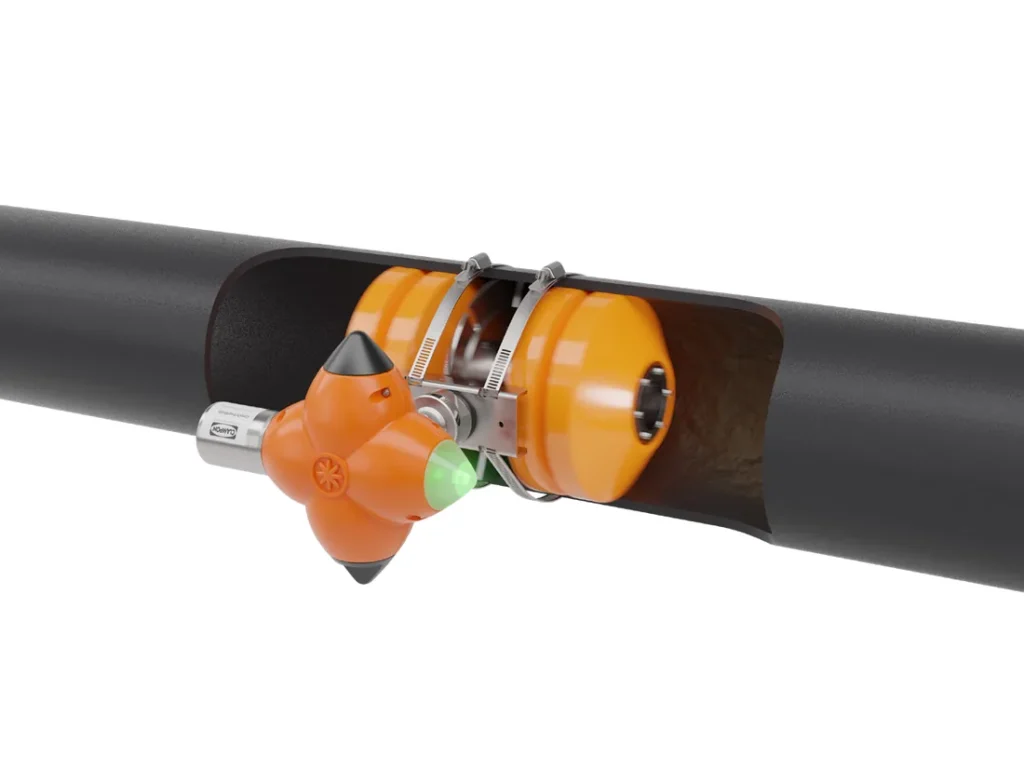

A pig signaler at a remote valve station is only useful if someone can see it. The ClampOn BIRD PIG Detector is a wireless pig detector that sends every pig passage to your control room, with no cable to pull.
PT Saka Nusa Persada supplies the ClampOn BIRD PIG Detector across Indonesia as a ClampOn distributor. ClampOn built it for onshore, downstream and unconventional pipelines, especially where cabling is expensive or impossible. You can also read more at ClampOn.
How the Wireless Pig Detector Works
The BIRD senses a passing pig with passive acoustic (ultrasonic) technology. Its internal DSP analyzes changes in signal level at multiple frequencies as the pig goes by. For extra certainty, an optional magnetic flux gate adds dual detection. Consequently, it reliably detects any type of pig, from foam pigs to steel mandrel pigs.
First, a light on the instrument shows the passage locally. At the same time, the BIRD sends a “pig passed” signal or a raw signal over the wireless network to your control system, where ClampOn software or your MCS can display the signal graphically.
Why Go Wireless?
- No cabling: there are no cables, junction boxes or wiring diagrams to engineer.
- Non-intrusive: the sensor clamps to the outside of the pipe, so nothing touches the flow.
- Long-life PowerModule: more than a year of operation on one module, according to ClampOn.
- Fast rollout: because the mesh forms itself, a full network is up in a few hours.
- Fits many sizes: in addition, it installs easily on pipes of various dimensions.
BIRD PIG Detector Specifications
| Detection | Ultrasonic (acoustic); optional magnetic flux gate for dual detection |
| Installation | Non-intrusive, so it simply clamps to the pipe surface |
| Pipe surface temperature | −40 °C to +140 °C (high-temperature option −162 °C to +350 °C) |
| Radio | 862–930 MHz, IEEE 802.15.4g, FCC and CE, up to 1 km line of sight |
| Network | Self-forming, self-healing multi-hop mesh, and data is also encrypted |
| Interface | RS-485 (Modbus RTU) |
| Data rate | Configurable from 1 second to 60 minutes |
| Enclosure | PBT and 316L, IP65, 212 × 174 × 165 mm, 1.2 kg |
| Power | 0.1 W on average, because of the energy-efficient ClampOn DSP III electronics |
Specifications follow the ClampOn brochure (August 2026) and datasheet (January 2026) and may change without notice.
For hazardous plant areas with cabling, compare the ClampOn DSP PIG Detector. Then match the detector with our Girard cleaning pig range or our pipeline pigging services.
Explore the full ClampOn sensor range available in Indonesia through PT Saka Nusa Persada.
Tracking pigs across long or remote pipelines? Request a technical assessment, and then we will plan detector locations and the wireless network for your route.
