Every buried pipeline, tank bottom and jetty pile is slowly losing steel to corrosion. However, the right cathodic protection systems can stop it in time.
Cathodic protection (CP) works by turning the protected steel into the cathode of an electrochemical cell. As a result, the corrosion reaction shifts away from your asset. With KIG TECH cathodic protection systems, PT Saka Nusa Persada therefore delivers the complete material package for long-term protection.
About KIG TECH
KIG TECH manufactures and exports high-performance CP systems for pipelines, marine structures, storage tanks and industrial infrastructure. With more than 17 years of expertise, the company also offers turnkey delivery, including design, manufacturing, installation and technical support. Moreover, ISO 9001, ISO 14001 and ISO 45001 certify its management systems. You can learn more on the official KIG TECH website.
Two Cathodic Protection Systems to Stop Corrosion
Sacrificial Anode Cathodic Protection (SACP)
Magnesium, aluminium and zinc anodes corrode in place of your structure, so they supply protective current without any external power source. In addition, pre-packaged magnesium anodes make installation on buried pipelines quick and clean.
Impressed Current Cathodic Protection (ICCP)
Here, a transformer-rectifier drives a controlled current through MMO or ruthenium-coated titanium anodes. Consequently, ICCP is the usual choice for long pipelines, large tank farms, jetties and offshore structures.
Complete Material Range for Cathodic Protection Systems

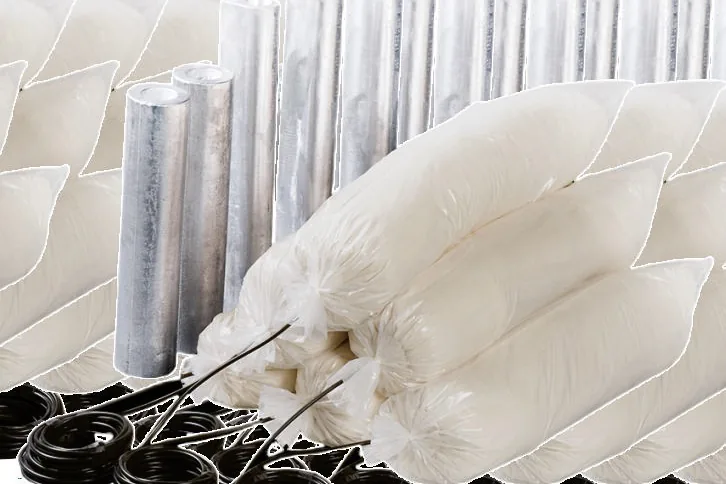

- Sacrificial anodes: magnesium, aluminium and zinc, including pre-packaged magnesium anodes.
- ICCP anodes: MMO and ruthenium-coated titanium anodes, especially for large structures.
- Power supplies: ICCP transformer-rectifier units, so the system receives a controlled current.
- Monitoring: test stations and reference electrodes, because what you measure, you can protect.
- Accessories: CP cables as well as the full set of system components.
Technical Specifications
| Sacrificial anodes | Magnesium (Mg), aluminium (Al), zinc (Zn) |
| ICCP anodes | MMO / ruthenium-coated titanium |
| Power supply | ICCP transformer-rectifier units |
| Accessories | Test stations, reference electrodes, cables |
| Design standards | ISO 15589-1, NACE SP0169 |
| Manufacturer certification | ISO 9001, ISO 14001, ISO 45001 |
Typical Applications
- Buried and subsea pipelines
- Storage tank bottoms
- Jetties and marine structures
- Ship hulls
- Offshore platforms
- Water treatment plants
Cathodic Protection Systems: Design, Supply and Installation
Products are only half the story. Therefore, our team also provides CP installation services and CIPS and DCVG surveys to verify that your system performs as intended.
Is your pipeline truly protected? Request a technical assessment, and then we will recommend the right cathodic protection systems for your asset.
